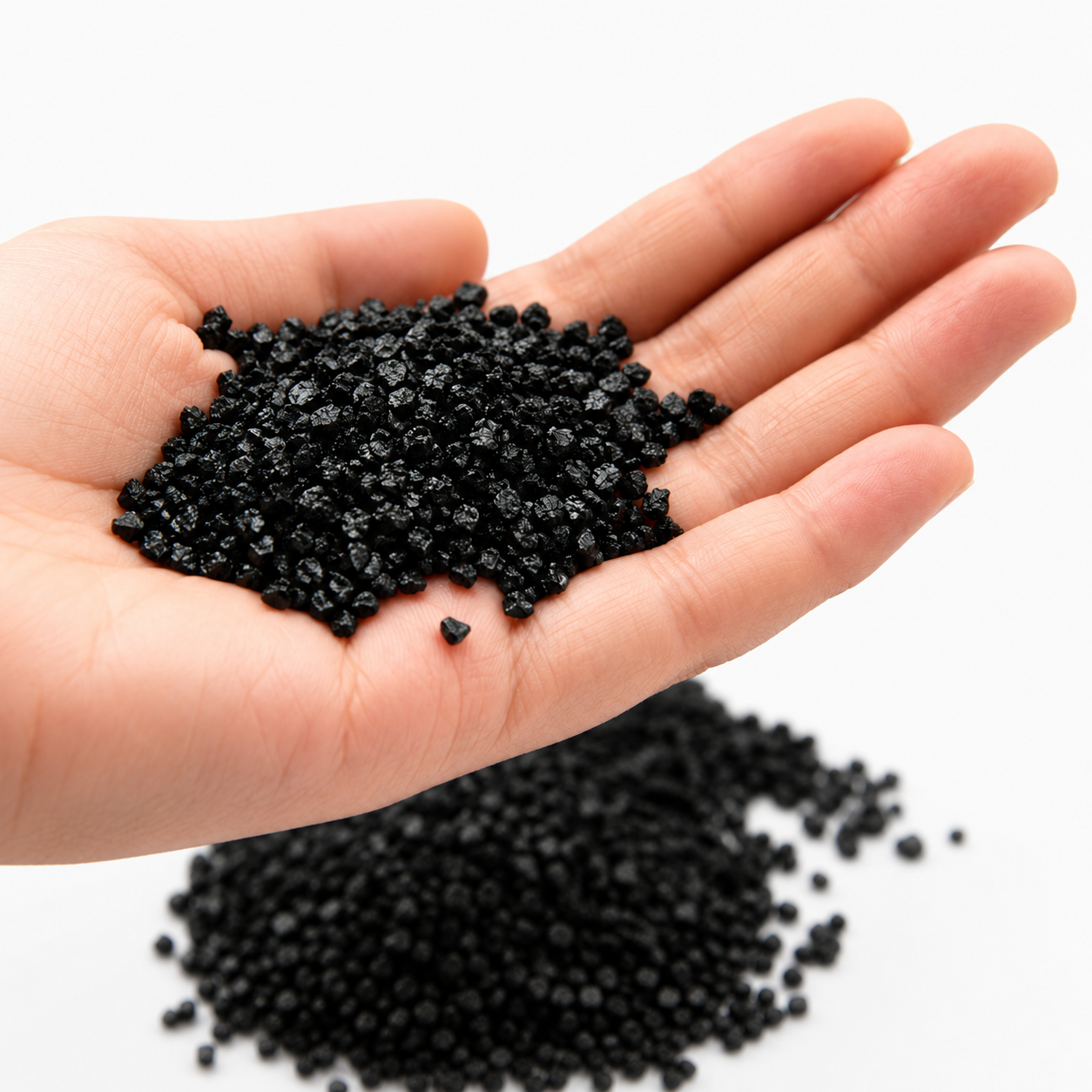

Granular Activated Carbon
Granular Activated Carbon Treatment is widely used in water purification systems to remove chlorine, odor, color, taste contaminants, VOCs, dissolved organic compounds, and industrial pollutants. As trusted Granular Activated Carbon Manufacturers, Carbure Activated Carbon supplies reliable grades for drinking water, wastewater, process water, ETP, STP, and RO pre-treatment applications.
Carbure Activated Carbon manufactures high-quality Granular Activated Carbon from premium Coconut Charcoal using advanced steam activation technology. During activation, Coconut Charcoal faces superheated steam at 1000°C, developing a highly porous structure with excellent adsorption capacity for Granular Activated Carbon Treatment.
Granular Activated Carbon Treatment works by allowing water to pass through activated carbon beds, where contaminants are adsorbed into the internal pore structure of the carbon. This process improves water clarity, taste, odor, and overall purification efficiency.
Typical Technical Specifications
The following table provides the standard technical specifications for Granular Activated Carbon Treatment grades manufactured by Carbure Activated Carbon. Custom specifications can also be supplied based on application requirements.
|
Particle Size US mesh |
CTC Activity (%) |
Apparent Density (gm/cc) |
Moisture (%) |
Iodine No (mg/g) |
Ash (%) |
pH |
|
3x6 |
20-55 |
0.46 to 0.48 |
5 max |
900-1100 |
3 max |
9-11 |
|
4x8 |
20-60 |
0.46 to 0.48 |
5 max |
900-1150 |
3 max |
9-11 |
|
6x12 |
20-60 |
0.47 to 0.52 |
5 max |
900-1200 |
3 max |
9-11 |
|
8x16 |
20-80 |
0.47 to 0.52 |
5 max |
900-1300 |
3 max |
9-11 |
|
8x30 |
20-80 |
0.47 to 0.52 |
5 max |
900-1400 |
3 max |
9-11 |
|
12x30 |
20-80 |
0.48 to 0.52 |
5 max |
900-1400 |
3 max |
9-11 |
|
30x60 |
20-75 |
0.47 to 0.50 |
5 max |
950-1500 |
3 max |
9-11 |
